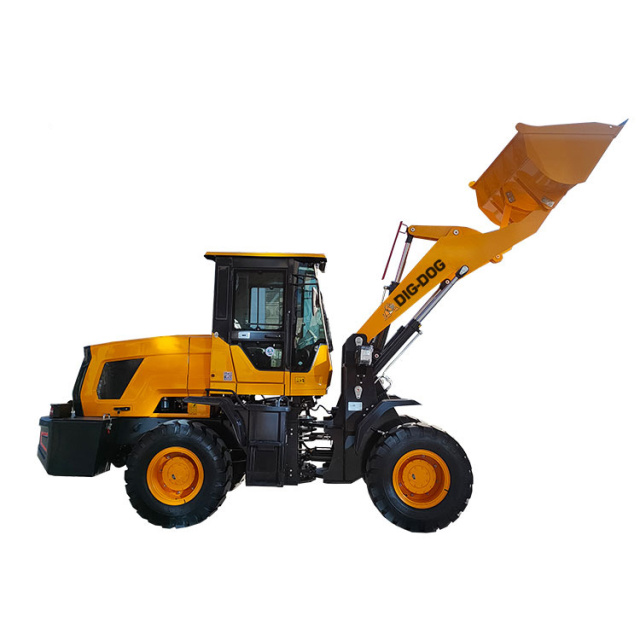

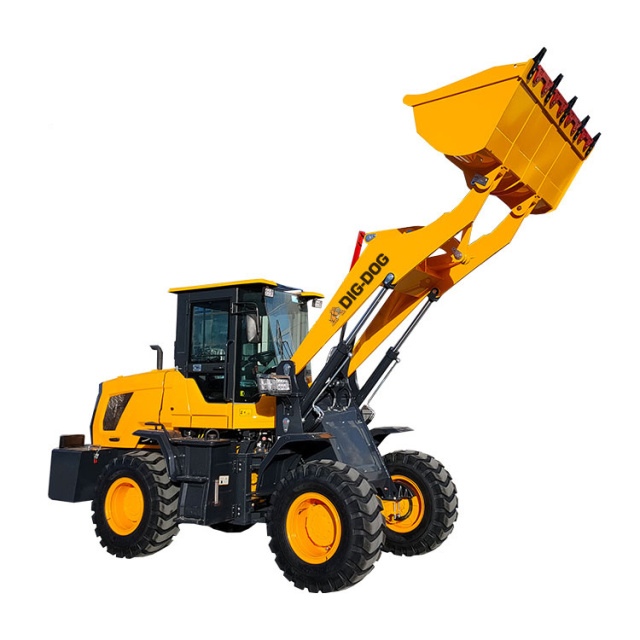

Name: DIG-DOG DWL20 Wheel loader 2 Ton
Brand: DIG‑DOG | Versatile Compact Excavators & Loaders for Tough Jobs
SKU: DWL20
Availability: InStock
Rating: 5 (1 reviews)

DIG-DOG DWL20 Wheel loader 2 Ton

No.DWL20

KEY SPECS::

Bucket Capacity: 0.8m³

Rated Load: 2 ton

Power: 75 kw/102 hp

Upgradeable Configuration

Custom Attachments

Description

DIG-DOG DWL20 Overview

Discover the robust Chinese DIG-DOG DWL20 compact loader for sale! With a 2-ton rated load capacity and optional 2-2.4 meter buckets, it boasts impressive speed, acceleration, traction, and lifting force. Its reliable four-wheel drive and sturdy structure ensure enhanced safety and performance.

Compact Loader | Front End Loader For Sale

Parameters		DWL20
Rated bucket capacity	m3	0.8
Hopper width	mm	2000
Rated load	kg	2000
Total weight	kg	5300
Engine type	/	Huafeng 4102 supercharged
Power of engine	kw	75
Length	mm	7200
Width	mm	2200
Hight	mm	3200
Dumping height	mm	3500
Dumping reach	mm	1000
Minimum ground clearance	mm	300
Minimum turning	mm	4650
F.Unloading angle	°	30
Tyre	/	16/70-20
Axle	/	Middle rim bridge
Distance between axles	mm	2420
Distance between wheels	mm	1560
Climbing angles	°	25

DWL20 Features & Benefits

1. Fast acceleration, good acceleration performance and high operation efficiency;

2. Drive axle has strong bearing capacity, improving safety performance;

3. Robot welding, beautiful weld formation, stable arc;

4. Large space cab, clear and open vision, good sealing and sound insulation effect.

5. CAE analysis shall be conducted for all structural members; Great digging force; More adaptable to severe working conditions.

DWL20 Details Images


16/70-20 Tires The tooth groove design is anti-slip and durable; Widen and thicken tire walls; High quality rubber, strong grip; Suitable for various complex construction sites.	Hydraulic device Using fully hydraulic components; High quality hydraulic cylinder; Thickened hydraulic oil pipe; Pilot hydraulic operating system; Flexible movement and smooth operation.

Luxurious Cab Ergonomic design, safe and comfortable 360-degree full view driving; Adjustable seat; Panoramic sunroof equipped with protective net; Easy to operate and more efficient.	Median Hinge The movement trajectory of the front and rear tires is consistent, reducing the steering resistance and increasing the service life of the tires.
