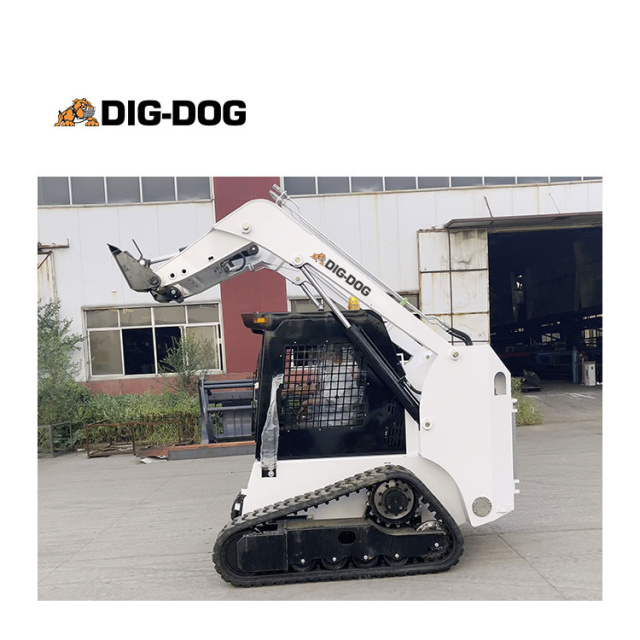

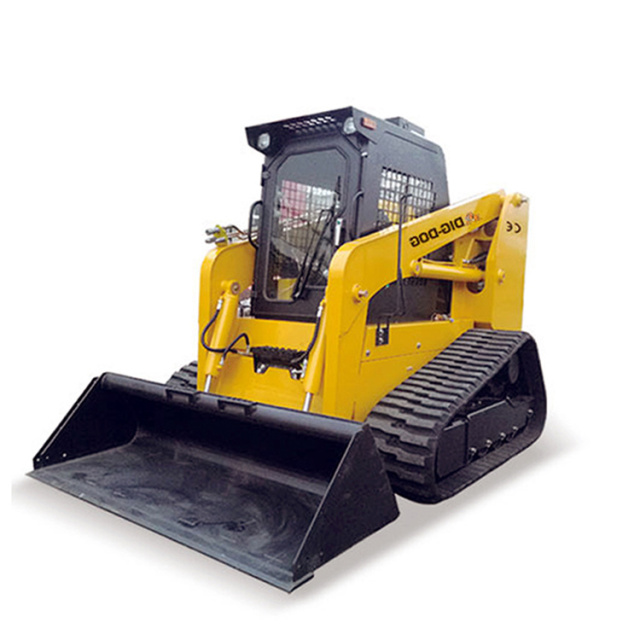

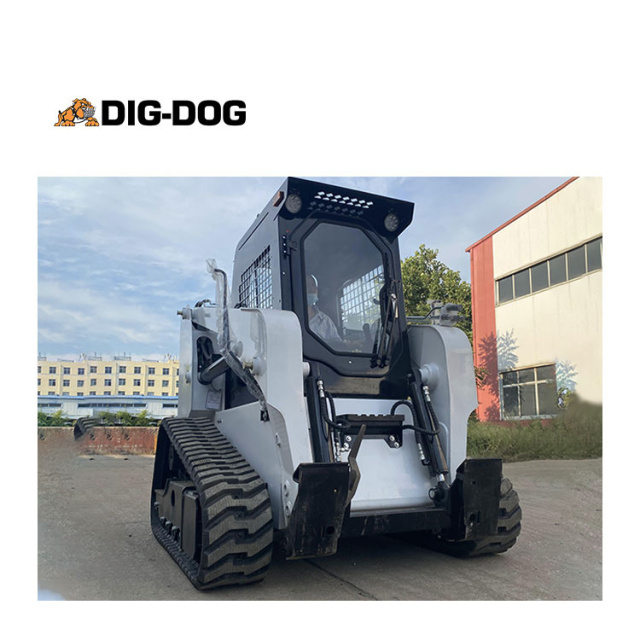

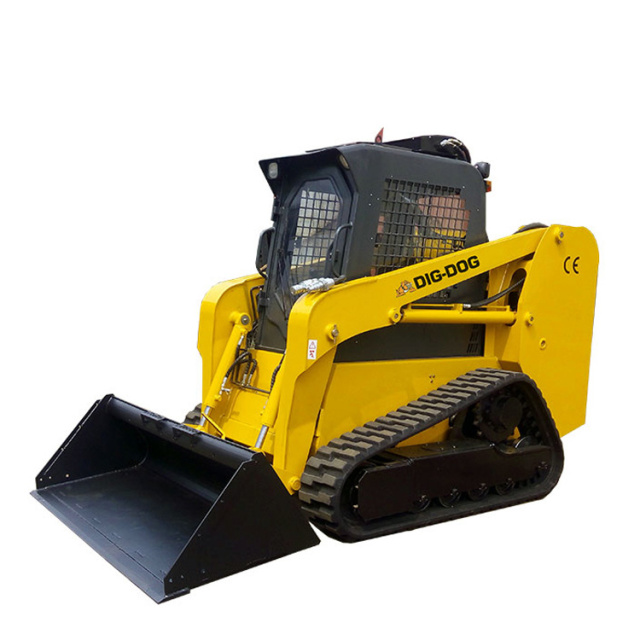

DIG-DOG Track Skid Steer Loaders |
|||||
Model
|
CSL25
|
CSL50
|
CSL65
|
CSL100
|
CSL120
|
Performance
|
|||||
Operating load (kg)
|
380
|
700
|
1000
|
1200
|
1500
|
Max Speed(km/h)
|
9
|
10
|
12
|
12\18
|
12\18
|
Rated flux (L/min)
|
37
|
60
|
80
|
88
|
88
|
High Flow Flux (L/min)
|
/ | / |
120
|
140
|
140
|
Tire(track) model
|
5.7-12
|
300X52.5
|
320X84
|
320X84
|
450 X86
|
Rated power (Kw)
|
19
|
36
|
55
|
74
|
103
|
Fuel tank capacity (L)
|
28
|
50
|
90
|
90
|
90
|
self weight bucket (kg)
|
1800
|
2800
|
3800
|
4500
|
4800
|
Bucket capacity (m³)
|
0.19
|
0.3
|
0.5
|
0.55
|
0.6
|
Size Parameters
|
|||||
Overall operating height (mm)
|
3686
|
3350
|
3480
|
4070
|
4070
|
Height to bucket hinge pin (mm)
|
2780
|
2770
|
2900
|
3150
|
3150
|
Hheight to top of cab (mm)
|
1860
|
2050
|
2150
|
2160
|
2160
|
Height to bottom of level bucket(mm)
|
2190
|
2603
|
2730
|
2983
|
2983
|
Without bucket length(mm)
|
2213
|
2300
|
2750
|
3000
|
3000
|
Overall length with bucket(mm)
|
2911
|
2950
|
3500
|
3700
|
3700
|
Dumping angle at maximum height(° )
|
40
|
40
|
40
|
40
|
40
|
Dumping height(mm)
|
1933
|
2100
|
2230
|
2450
|
2450
|
Dumping reach(mm)
|
650
|
790
|
715
|
700
|
700
|
Rollback o bucket on ground(° )
|
30
|
30
|
30
|
30
|
30
|
Rollback of bucket at full height(° )
|
103
|
104
|
104
|
104
|
104
|
Wheelbase(mm)
|
/ |
1240
|
1500
|
1500
|
1500
|
Ground clearance(mm)
|
145
|
140
|
200
|
200
|
200
|
Angle of departure(° )
|
20
|
20
|
20
|
20
|
20
|
Front turning radius without bucket(mm)
|
960
|
1064
|
1298
|
1365
|
1365
|
Front tuning radius(mm)
|
1660
|
1825
|
2010
|
2200
|
2200
|
Rear tuning radius(mm)
|
1253
|
1264
|
1714
|
1742
|
1742
|
Rear axle to bumper (mm)
|
910
|
594
|
890
|
938
|
938
|
Tread width (mm)
|
/ |
1102
|
1462
|
1654
|
1654
|
Width (mm)
|
912
|
1402
|
1782
|
1994
|
2124
|
Bucket width (mm)
|
950
|
1500
|
1830
|
2030
|
2160
|
