DIG-DOG BL820T Backhoe Loader 8200 Kg

Item No.: BL820T
DIG-DOG BL820T compact tractor backhoe loader is a deeply improved version of the DIG-DOG BL820T backhoe loader. This machine adopts more international components, including the Italian Carraro axles, Carraro transmission box, Weichai or Cummins diesel
Description Product parameters Attachments FAQ Review
Description
DIG-DOG BL820T Compact Tractor Backhoe Loader
The BL820T compact tractor backhoe loader is a deeply improved version of the DIG-DOG BL820T backhoe loader. This machine adopts more international components, including the Italian Carraro axles, Carraro transmission box, Weichai or Cummins diesel engine. Compared to the BL820T, Carraro axles adopts wet drive brakes, resulting in higher driving speed and more flexible operation. The DIG-DOG BL820T has four forward gears and four reverse gears, and the travel speed is 38 Km/h. With muti-purpose bucket and variable attachments, BL820T will be the backbone of the construction industry.

DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment

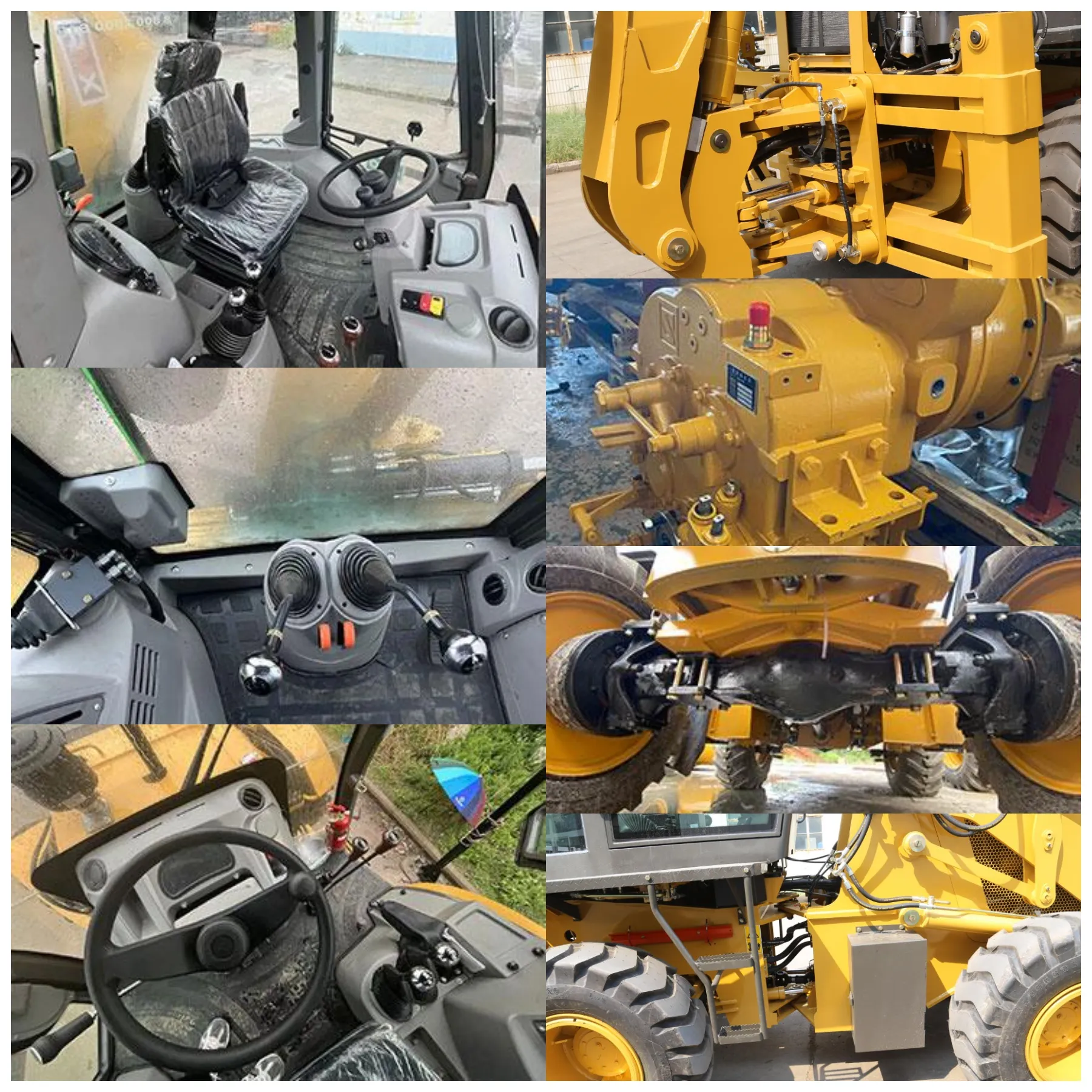

BL820T Details Images
DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment

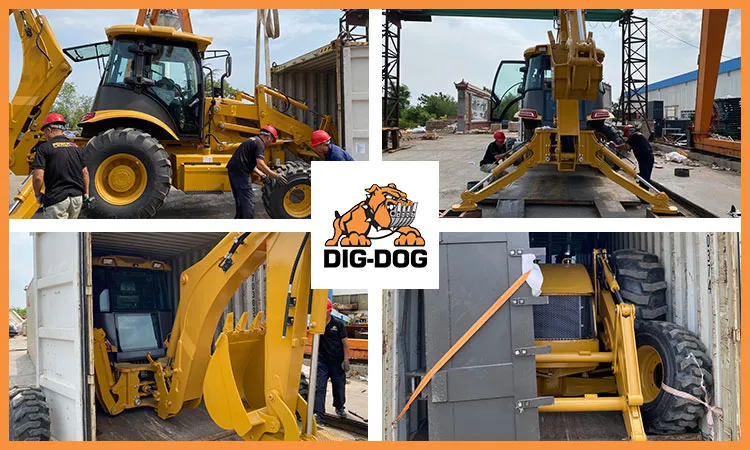

Packaging & ShippingDIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment
Company Profile
DIG-DOG BL750 Mini Tractor Backhoe Loader
DIG-DOG, dig love & build dream!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG has our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.

DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment
Product parameters
The Main Performance Parameter of  BL820T Backhoe Loader
Overall Operating Weight 8200KG Steering System
Transport Dimension Diverter Model BZZ5-250
L*W*H 6150×2250×3630 Steering Angle ±36°
mm
Wheel base 2264 mm Min. Turning radius 6581mm
Min. Ground Clearance 300 mm System pressure 12Mpa
Bucket Capacity 1.0 m3 Axle
Breakout Force 38 KN Manufacturer Italy Carraro
Loading Lifting Capacity 2500 KG Rated dynamic / static load of front axle 9 T / 22.5T
Dumping Height 2650 mm Rated dynamic / static load of rear axle 7.5 / 18.75 T
Dumping reach 1025 mm Transmission
Loading cutting depth 52 mm Gearbox
Backhoe Capacity 0.3 m3 Model TLB1-4WD
Type Fixed Shaft Powershift / Electric control
Max. Digging Depth 4082mm Tyre
Digging slewing angle 190° Front / Rear model 14-17.5/19.5L-24
Max. Pulling Force   39KN Air Pressure of Front tire 0.55 Mpa
Engine Air Pressure of Rear tire 0.23 Mpa
Model DEUTZ WP4G95E221 Brake System
Type inline,direct injection , water cooled , turbochared, 4-stroke Service Brake Wet, Internal,Self-regulation, Self-balance
Cylinder-inner Diameter*Stroke 4-105×130 Parking / Emergency Brake Spring brake / Hydraulic terminating brake
Rated Power 70KW Travel speed 38 km/h
Rated Speed 2200r/min Hydraulic System
Min. Fuel Consumption ≤230g/km.h Bucket Digging Power 46.5KN
Max.Torque 380 N.m / 1400-1600 rpm Digging Power of Dipper 31KN
Displacement 4.5L Total cycling time 11.9 ± 0.15 s

Related Models

DIG-DOG BL350 Mini wheel Front End Loaders Compact Backhoe Loader DIG-DOG BL750 Mini wheel Front End Loaders Compact Backhoe Loader DIG-DOG BL820 Mini wheel Front End Loaders Compact Backhoe Loader
BL350

BL750

BL820

BL820W

BL820T

BL920

Attachments
DIG-DOG also offers the following attachments for the backhoe loaders, in a variety of sizes and specifications to fit your BL820T compact tractor backhoe loader:

DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment
DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment
DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment
DIG-DOG BL820T Compact Tractor Backhoe Loader With Multi-Function Attachment
FAQ
1. Are You Original Manufacture?
Yes, DIG-DOG is a Manufacturer In Construction Machinery In China And We Have The Wholeseries Earth Moving Machines You Need.
2.Which Incoterms Terms Can We Work?
Normally We Work On FOB, CFR, CIF.
3.Which Payment Terms Do You Accept?
Normally We Can Work On T/T Term Or L/C Term.
4.What About The Warranty Time?
12 Months After Shipment Or 2000 Working Hours.
5.What About The Delivery Time?
7-30 Days After Receiving The Deposit.
6.What About The Minimum Order Quantity Of BL750 Backhoe Loader?
The MOQ Is 1 Pcs.
7.What To Look For When Buying A Tractor Backhoe Loader ?
-The purpose of the machine
-Type of material being moved
-Assess The load.
-Look At The Controls.
-Assess Other Functional Features.
-Think About The Attachments For Your Backhoe Loader.
8. Price difference?
The product prices on the website fluctuate due to factors such as raw material costs. Please refer to the quotation from the business person in charge.
