DIG-DOG Amphibious Pontoon Excavator For Sale

Item No.: AP
  • KEY SPECS::
    Max working water depth: 14 m
    Semi-automatic telescopic tank
    Fully automatic telescopic tank
    Upgradeable Configuration
    Custom Attachments
Description Specification Details FAQ Review
Description

DIG-DOG Amphibious Excavator For Sale

DIG-DOG amphibious excavators are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help. The vehicle is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher. Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps. Three rows of walking chains ensure safe and reliable walking in the water.
Amphibious Excavator For Sale | Floating Excavator

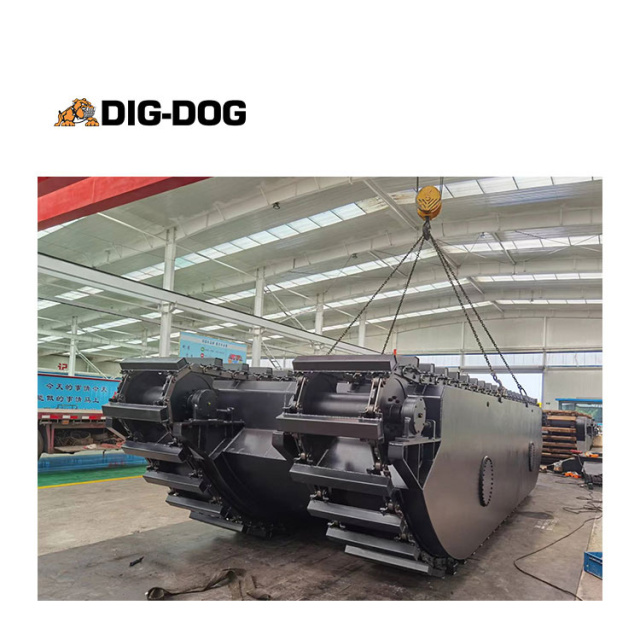

DIG-DOG's amphibious pontoon adopts a hollow structure to provide enough buoyancy, so that the whole machine floats on the water surface, ensuring that the whole machine can be transferred in deep waters, and can guarantee a maximum working water depth of 14 meters. Convenient. DIG-DOG's amphibious pontoon adopts a three-row chain structure to improve the safety of walking in water. The unique structure makes disassembly and assembly more convenient.
Amphibious Excavator For Sale | Floating Excavator

Top Features & Benefits

Amphibious Excavator For Sale | Floating Excavator
Semi-automatic and fully automatic options for positioning piles of the pontoon. There are inspection holes inside the pontoon and equipped with travel motors.
Engine
An lmported lsuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
Amphibious Excavator For Sale | Floating Excavator

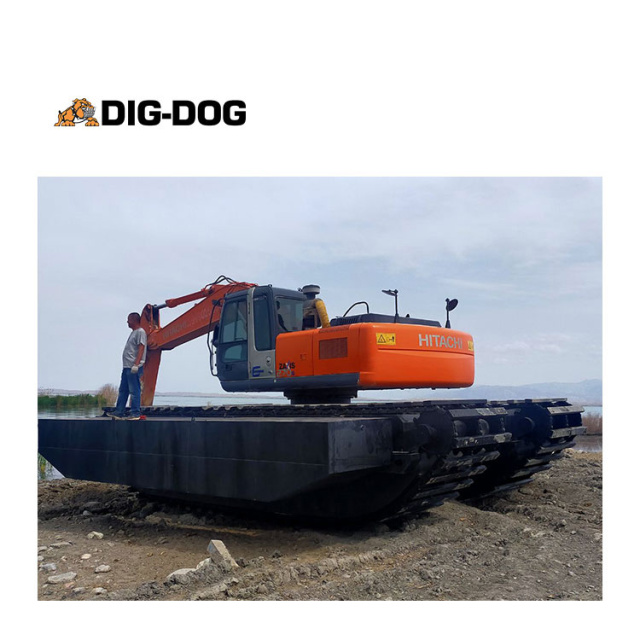

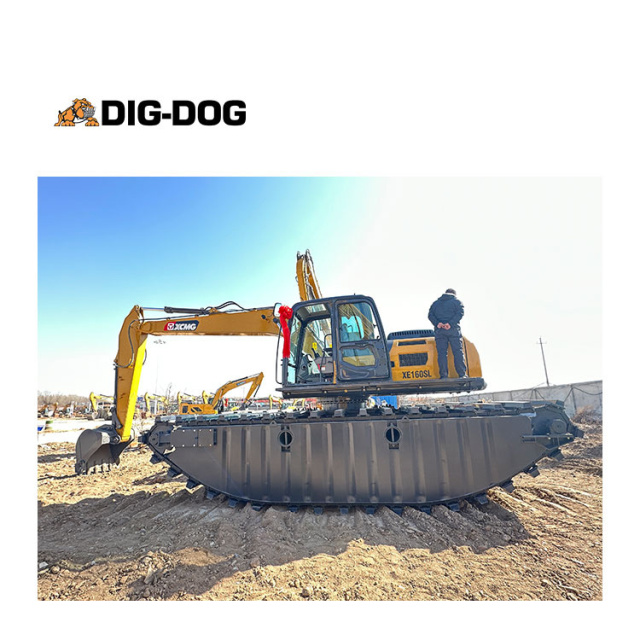

Customer Photos

Amphibious Excavator For Sale | Floating Excavator

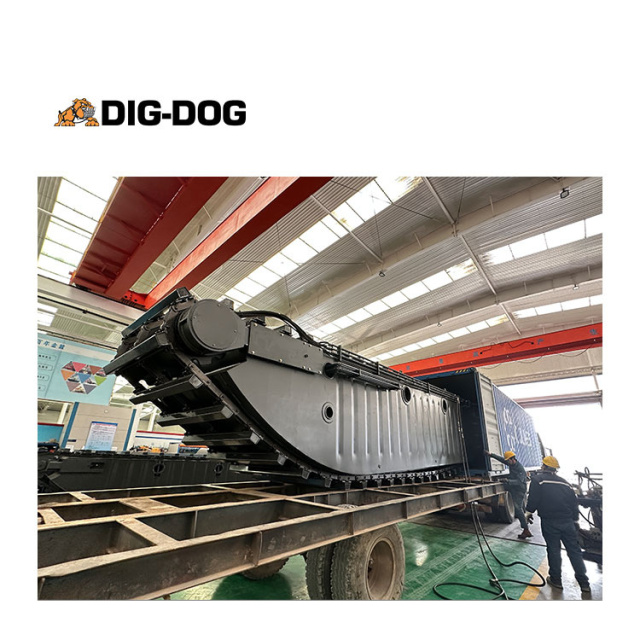

Packaging & Shipping

Amphibious Excavator For Sale | Floating Excavator
Specification
Amphibious Excavator For Sale | Floating Excavator
Description DIG-DOG Amphibious Undercarriage Pontoons For Excavators
AP-50 AP-80 AP-140 AP-180 AP-200 AP-250 AP-300 AP-350 AP-450
Upper Tons 3-5t 6-8t 11-15t 16-19t 20-24t 25-27t 27-30t 30-40t 40-50t
Pontoon Grounded Length 1200 2000 3500 4500 5000 6000 6500 7000 7000
Undercarriage Length 5200 5700 6200 8500 9500 10500 10500 11500 13500
Overall Length 6100 7260 8070 10290 11460 13300 13610 14480 14480
7300 9550 11300 12950 14450 14450 15450 15950 15950
8500 10550 12300 13950 15750 15750 16750 17100 17100
Overall Height  2600 3700 3770 2870 3950 3980 4040 4140 4800
Counterweight Ground Clearance 1510 1810 2010 2010 2010 2010 2010 2200 2540
Spuds Height 6000 6000 6000 8000 8000 10000 10000 12000 12000
Overall Width 4700 5500 6160 6360 6800 6800 8000 8000 8000
Pontoon Height 1340 1640 1840 1840 1840 1840 1840 2040 2340
Track Gauge 2700 3500 3660 3660 3700 3700 4700 4700 4700
Overall Width 3700 4500 5160 5160 5200 5200 6400 6400 6400
Pontoon Width 1000 1300 1500 1500 1500 1500 2000 2000 2000
Spuds Cross Range 3500 4000 4500 5000 5600 5600 5600 6000 6000
Spuds Width 4100 4900 5560 5560 5600 5600 6800 7000 7000
Details
Amphibious Excavator For Sale | Floating Excavator
Amphibious Excavator For Sale | Floating Excavator
FAQ
Q: Are you a manufacturer?
A: DIG-DOG factory is mainly focusing on small earth moving machines and amphibious excavators. We started our factory in 2006, but our industry experience dates back to the 1980s.

Q: Why choose DIG-DOG over any other company?
A: We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every DIG-DOG product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China. Our design team works closely with customers for any customized orders.

Q: Which payment terms do you accept?
A: We can work on T/T bank transfer and 100% irrevocable L/C, we also accept trade assurance orders paid by Alibaba using Credit Card, PayPal, Western Union or Escrow, which is now safe and fast for both. Please contact our customer representatives directly for a specific term.

 Q: What logistics way for product delivery?
 A: 1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
 2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.

Q: What are your warranty terms?
A: We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.

Q: What is your lead time?
A: We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-3 weeks. Contact our sales so you can have an accurate lead time based on actual situations.
