DIG-DOG DFL20 Diesel Forklift Truck 2 Ton

Item No.: DFL20
    Power: 37.4 kw
    Lifting Height: 3-6 m
    Upgradeable Configuration
    Support Custom Attachments
Description Product parameters Attachments Review

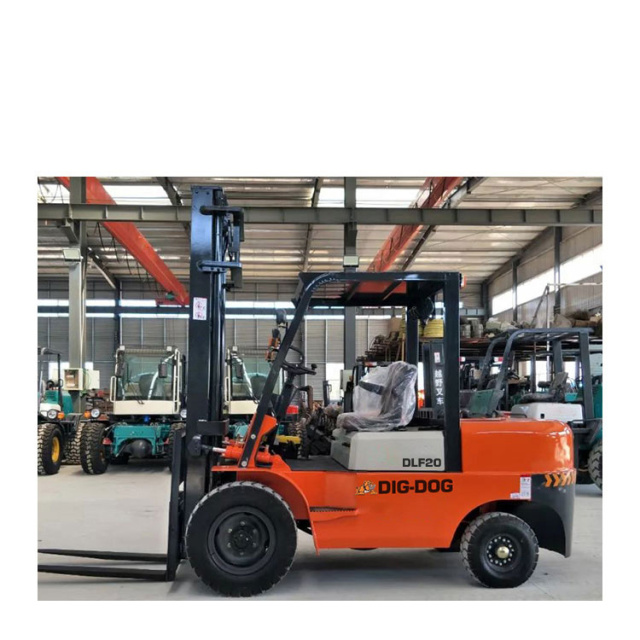

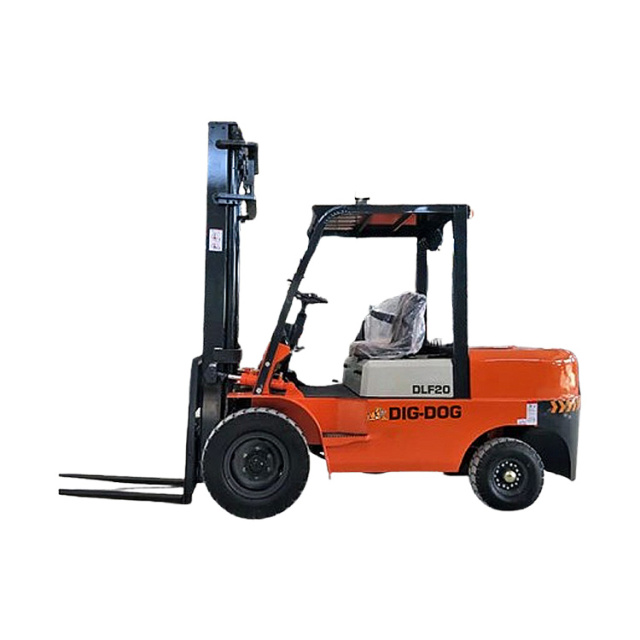

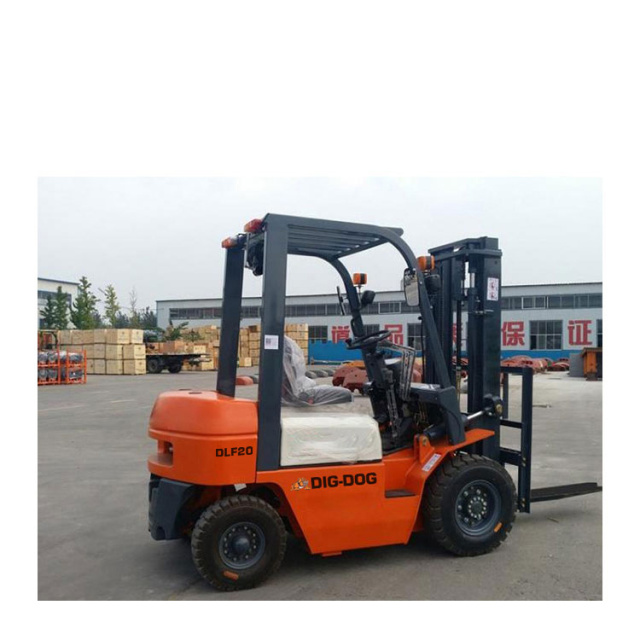

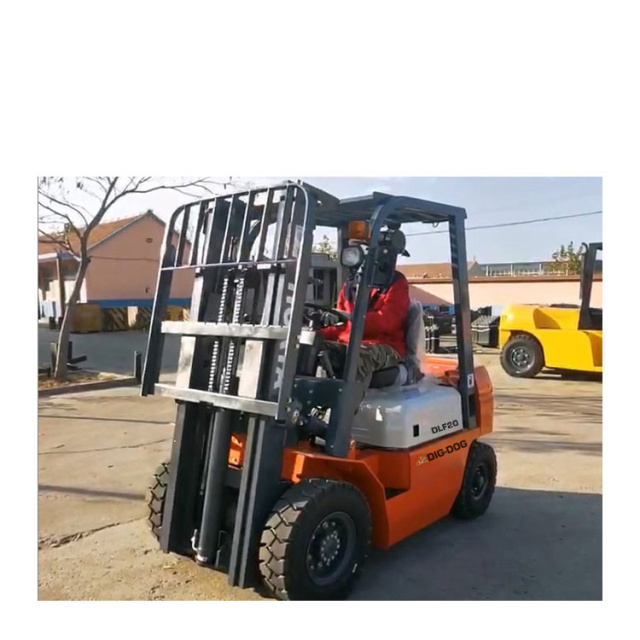

DIG-DOG DFL20 Diesel Forklift Truck 2 ton

DFL20 Overview

The DFL40 diesel forklift, a powerful rough terrain forklift designed to handle even the most challenging material handling tasks. Boasting an impressive engine power of 42kw, this forklift is capable of handling a rated load capacity of 4000kg with ease.
With an axle distance of 2000mm, the forklift provides stability and control, ensuring smooth and safe operations even in demanding environments. The ground clearance of 135mm allows it to traverse uneven surfaces and rough terrain with confidence. Weighing in at 4800kg, the DFL40 exudes a sense of solidity and durability, making it a long-lasting investment for any industrial operation.
The fork length of 1220mm ensures efficient loading and unloading of various sizes of cargo. Whether you're moving pallets, boxes, or other heavy materials, the DFL40 diesel forklift is the perfect tool for the job. The minimum turning radius of 2690mm allows for tight maneuvering in confined spaces, maximizing operational flexibility.
When fully loaded, the DFL40 can reach a speed of 20km/h, ensuring efficient transportation of goods. The front tires, measuring 28*9-15, and rear tires, sized 650-10, are designed for durability and traction, even in challenging conditions. The mast tilt angles of 6 degrees forward and 12 degrees backward provide added versatility for handling different types of loads.
Measuring 2.89 meters in length, 1.22 meters in width, and 2.09 meters in height, the DFL40 diesel forklift offers a compact yet powerful solution for warehouses, factories, and other industrial environments. If you're looking for a reliable and efficient rough terrain forklift, the DFL40 is an excellent choice.
This forklift truck can be configured with a variety of attachments. Compare its price to other clamp forklift models and you'll see why it's a cost-effective option for your material handling needs.

DFL20 Advantage

Hydraulic Lift
Reinforced And Thickened Door Frame
Customizable Height
Side Shift Can Be Added

Mini Forklift | High Reach Telescopic Forklift
Mini Forklift | High Reach Telescopic Forklift
Mini Forklift | High Reach Telescopic ForkliftPacking & Shipping
Mini Forklift | High Reach Telescopic Forklift

Product parameters

DIG-DOGDFL20 Diesel Forklift Trucks

Special type Power form unit diesel
Specified load kg 2000
Load center mm 500
Lift height mm 3000
Free height gain mm 100
Fork size Long×Width×Thick mm 1070×122×40
Mast inclination angle Before/After Deg 6/12
Minimum turning radius mm 2220
Minimum right angle channel width mm 2010
minimum ground clearance mm 120
Overhead guard height mm 2140
Front overhang mm 448
Performance Max driving speed Fully loaded/No load km/h 19/17
Max lifting speed Fully loaded/No load mm/s 550/530
Largest traction Fully loaded/No load KN 12.3/8.3
Maximum grade % 20
Size Full length With fork mm 3523
without fork mm 2453
Full width mm 1160
Max lifting height of fork (with shelf) mm 4220
Door frame floor height mm 2065
Chassis tire Front wheel 7.00-12-12PR
Rear wheel 6.00-9-10PR
Wheelbase mm 1600
Wheelbase Front wheel/rear wheel mm 970/970
Self-respect No load Kg 3530
Drive Battery Voltage/Capacity V/Ah 12/80
Engine model Xinchai490
Rated power kw/rpm 36.8/2500
Rated torque Nm/rpm 156/1700-1900
Bore size mm 90×105
Number of cylinders 4
Displacement L 2.54
Fuel tank capacity L 60
Transmission gear (front/rear) 2/2 manual shift 1/1 power shift
Work pressure MPa 17.5
DIG-DOG forklifts belong to lifting transportation machinery, which is widely used for the loading, unloading and handling of packaged goods in factories, warehouses, stations, docks, ports, etc. After being equipped with other working tools, it can also be used for the loading and unloading of bulk goods and other non-packed goods.
