Name: DIG-DOG DG75 Compact Excavator for Sale 7.5Ton Crawler Hydraulic Mini Excavator
Brand: DIG‑DOG | Versatile Compact Excavators & Loaders for Tough Jobs
SKU: DG75
Availability: InStock
Rating: 5 (1 reviews)

DIG-DOG DG75 Compact Excavator for Sale 7.5Ton Crawler Hydraulic Mini Excavator

No.DG75

DG75 suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of Fuit-land Nurseries, concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place.

Description

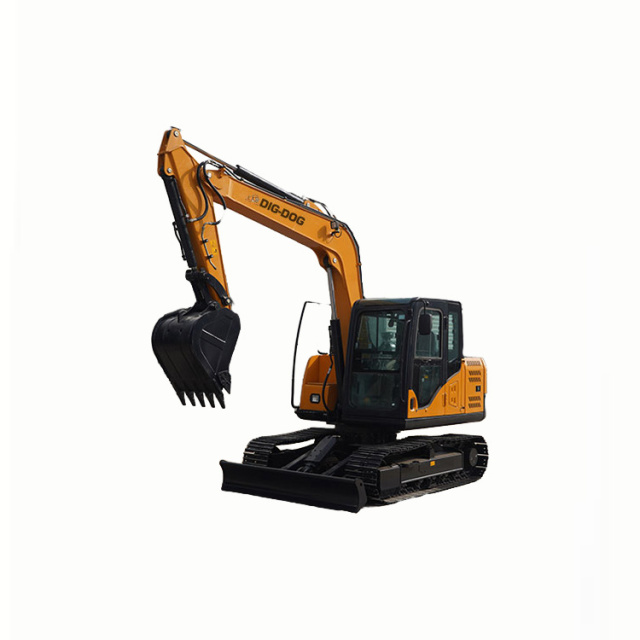

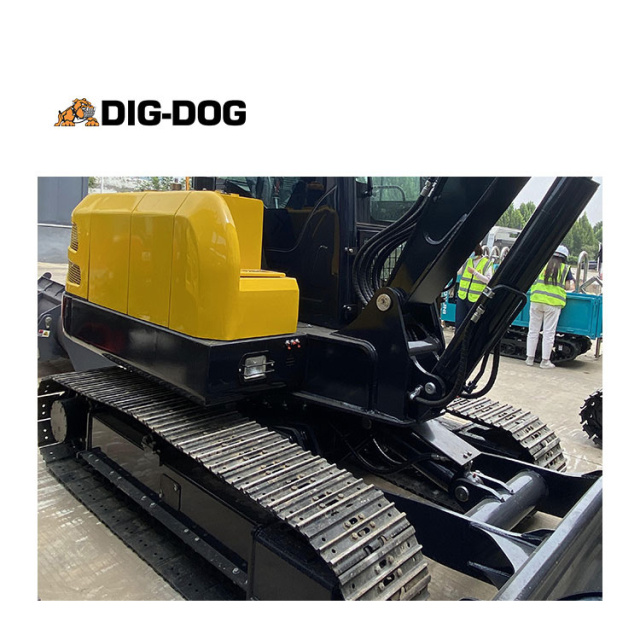

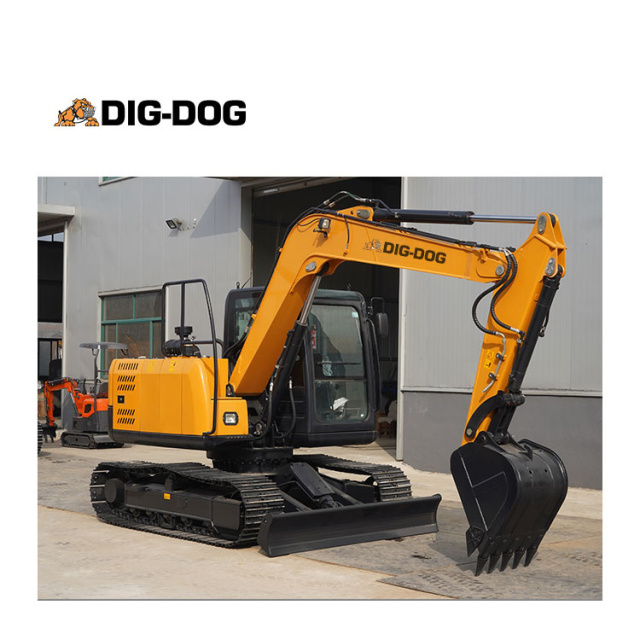

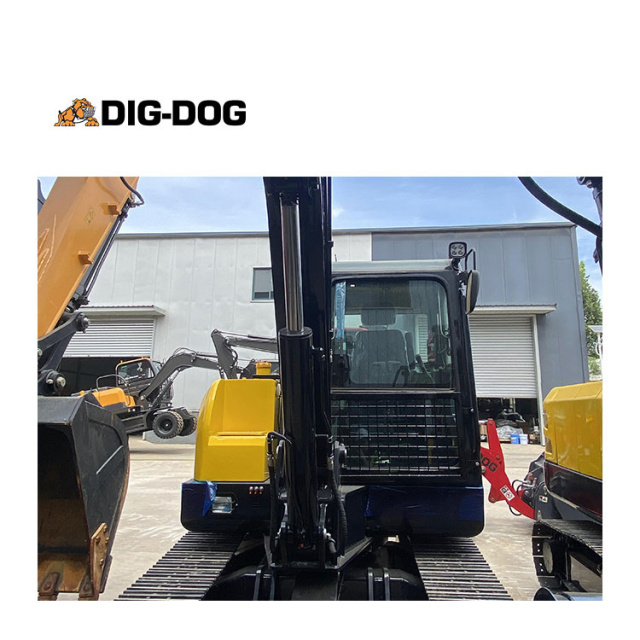

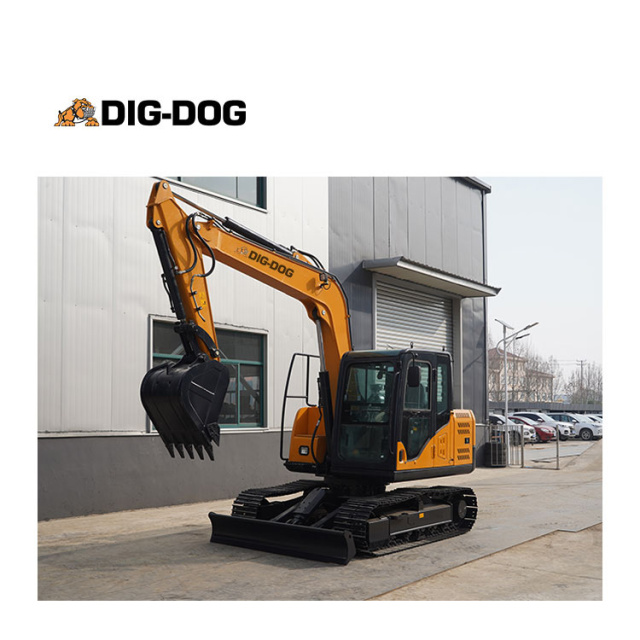

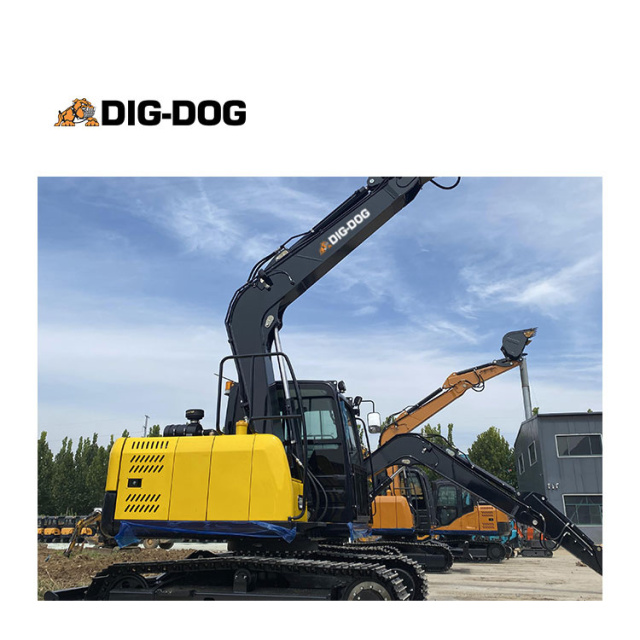

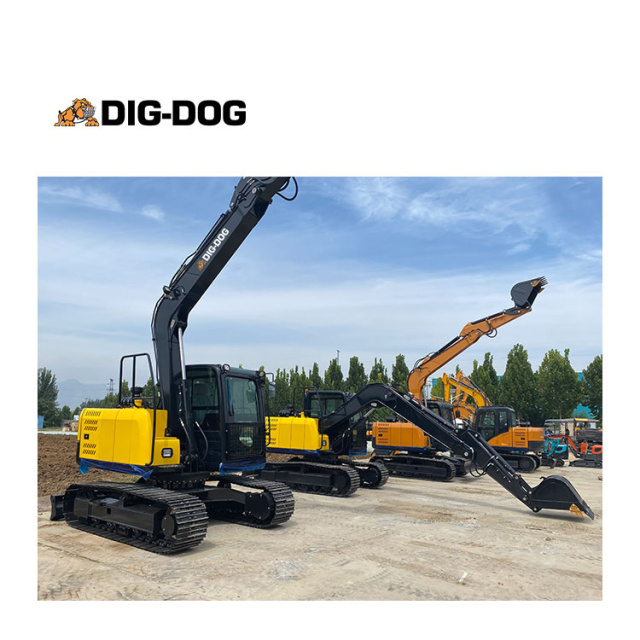

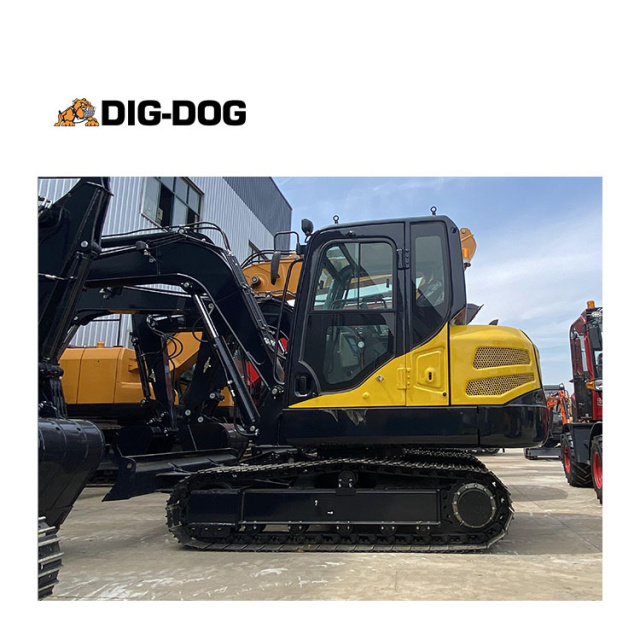

DIG-DOG DG75 SMALL CRAWLER EXCAVATOR
7.5 ton Small Crawler Excavator DG75 Cheap Hydraulic Crawler Excavator Price

Machine model No.		DG75
Type of tracks		Iron track
Machine weight		7500kg
Performance Parameter	Digging capacity (M3)	0.28
	Rotate speed (RMP)	0-11
	Maximum climbing angle (°)	35
	Digging the maximum excavation (KN)	56
	Maximum excavation force (KN)	38
	Engine model	KUBOTAV2607
	Power/speed (kw/rmp)	42.4/2000
	Tire model	-
	System pressure (MPA)	27

DG75 Applications

DG75 suitable for loosing soil of vegetable greenhouse, campus greening of municipal departments.

Digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work in the narrow place and so on.

Use the quick hitch can add the attachment tools like auger, hydraulic hammer, ditching bucket, grapple, thumb, tilt bucket, ripper, rake and so on.

Super Configuration · Excellent Performance · Import Configuration · Domestic Price

Domestic brand name engines, strong power, meet the requirements of high efficiency operations.

The accurate matching design and advanced energy saving control make the machine's fuel consumption less.

The adoption of the new cooling fan and the large muffler makes the noise of the machine lower.

Adopt advanced turbocharged technology to enhance the plateau adaptability of the machine.

The unique funnel shaped fan cover greatly improves the air volume of the engine and the ability of the system heat dissipation to ensure the continuous and efficient operation of the machine.

Advanced Hydraulic System

High end configuration: dual pump combined flow, full hydraulic pioneer, 360 degree rotation, imported oil pipe, original imported variable plunger pump, imported main valve, imported return assembly, imported walking assembly, with a broken oil circuit system, ensuring the product quality.

Integrate the latest research results, reduce energy consumption, improve design, and respond faster.

Strong and accurate rotation control: Improving the characteristics of vibration absorption to ensure that the stop action of turning rotation is more accurate and stable. By improving the torque reserves, it provides a stronger rotation ability to the machine.

Oil cylinder belt buffer function: moving arm oil cylinder and tap oil cylinder, bucket oil cylinder design has a buffer, which can reduce the vibration and impact of the machine, reduce noise and extend the life of the cylinder.

Double pump combined flow technology: Increase the traffic of the main valve supply arm, hip pole, and bucket of the oil cylinders to increase the operating speed.

Strong Durability and High Reliability

Improve the design of the cross section shape of the band frame, reduce the accumulation of soil, make the sprinkler more difficult to wear, and improve the durability of the machine.

The important hinge part of the buckle adopts forged structure, which changes the shape and thickness of the plate to alleviate the stress and improve durability.

The moving arm is made of overall welding. Finally, the bed and the holes are touched, and the alkane treatment can be well strengthened to strengthen the solid of the big arm and extend the service life of the sales and sets.

The bucket cutting plate is a special wear resistant steel plate, which is suitable for heavy duty operation requirements. It is equipped with wear resistant bucket teeth and side teeth to improve the performance of the machine.

Use thickened steel plates and increase side reinforcement plates to improve wear resistance.

Adopt a flat bottoming bucket to perform a flat and flat side when performing flat operations.

Comfortable Operating Environment

Expand the field of vision in all directions, increase the front windows, side windows, and rear windows to ensure open vision, greatly reduce blind spots, and operate more secure and efficiently.

Increase the skylight glass, improve the upward visibility and increase ventilation. The doors and windows are tempered glass to prevent direct sunlight from the sun.

All operation controls are designed and arranged according to human machine engineering theory.
The operating handle is easy to control.

Luxury inner bag cab, LCD display board, luxury seat.

Install air conditioning and warm air to ensure the rapid heating in the room, refrigeration.

Intelligent Operation and Display

The electric throttle control system makes full use of the engine power, so that the machine always maintains the best efficiency and economy in different operating conditions.

Automatic idling function: turn on the automatic idling function. If the machine does not have any operations within 5 seconds, the engine automatically runs idling, saving fuel and reducing noise.

Multifunctional LCD monitor super large screen, digital display, comprehensively monitoring the working status of the engine (speed, water temperature, oil pressure, etc.), various operating information of the machine query at any time.

The function switch is concentrated on the control panel. Through the touch of the tactile, it is easy to choose.

Adopt a GPS satellite positioning system, remote diagnosis, fault warning, maintenance, and automatic reminder.

Convenient and Fast Maintenance

The oil filter, the pioneer oil filter, the fuel filter, and the oil water separator are set in the place where the ground can be performed on the ground.

Large capacity fuel tanks achieve long term operations.

Super toolbox is more conducive to the storage of backup items.

Longer maintenance and maintenance cycle: Choose high quality parts to extend the service life and reduce the maintenance time of the machine.

DIG-DOG DG75 Compact Excavator for Sale 7.5Ton Crawler Hydraulic Mini Excavator
