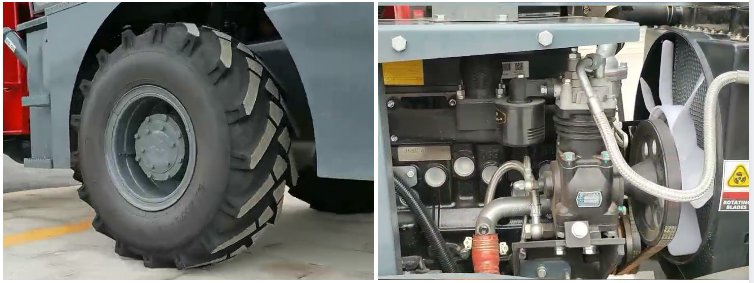

20.5-16 Herringbone tires
Ggood grip, anti-skid; Good desilting capabilities. |
Euro III Engine
Upright 4-cylinder, bore 98, piston stroke 105,
displacement 3.168, power 36.8 kw/2400 rpm; Strong power, low fuel consumption; Economical and practical.
|

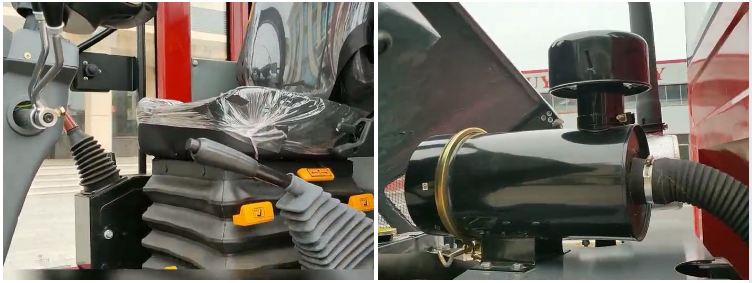

Luxurious Cab Ergonomic design, safe and comfortable 360-degree full view driving; Adjustable seat; Panoramic sunroof equipped with protective net. |
Air filter silencer
Noise reduction; Environmental friendly; Help the engine run stably.
|

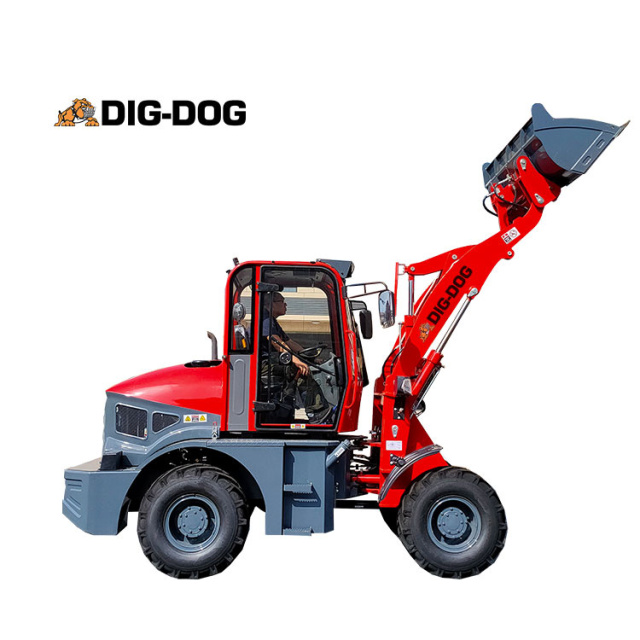

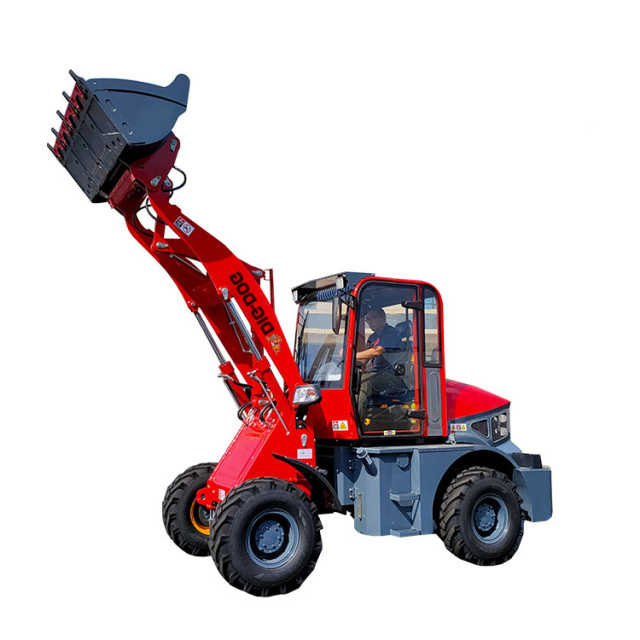

Parameters | Unit | DWL15 |
Rated bucket capacity | m3 | 0.6 |
Hopper width | mm | 1810 |
Rated load | kg | 1500 |
Total weight | kg | 3840 |
Engine type | / | Euro Ⅲ |
Power of engine | kw | 36.8 |
Dumping height | mm | 2650 |
Dumping reach | mm | 1000 |
Minimum ground clearance | mm | 260 |
Minimum turning | mm | 5100 |
Unloading angle | ° | 35 |
Tyre | / | 31-15.5-16 |
Axle | / | Isuzu Axle |
Distance between axles | mm | 1905 |
Distance between wheels | mm | 1150 |
Transmission assembly | / | 265 Integral single high gearbox |
Dimension | mm | 5370*1810*2680 |
Maximum fuel consumption | g/kw.h | 252 |
Air conditioning/heater;
Antifreeze/coolant, extended life; Cab: Open, Enclosed; Hydraulic quick change, skid steer loader compatible; Engine air precleaner; Radio Ready or AM/FM radio; Tires:size, solid tire, semi-solid tire, spare tire; Working lights, front and rear; Rear camera; ... |
