Description

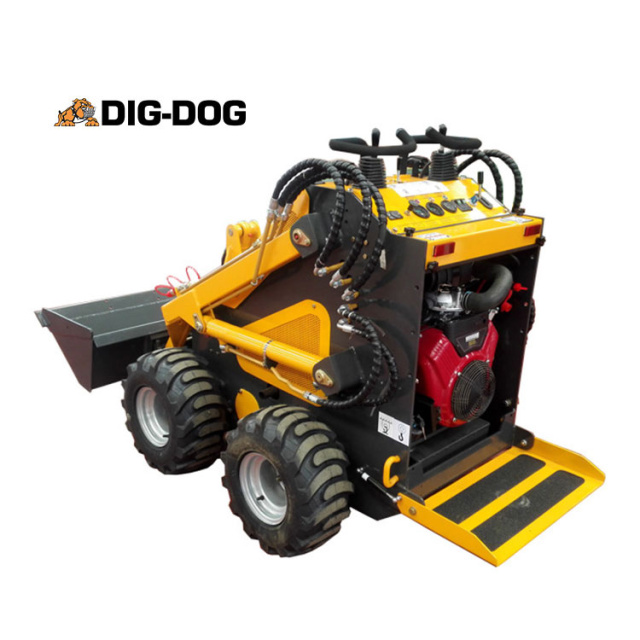

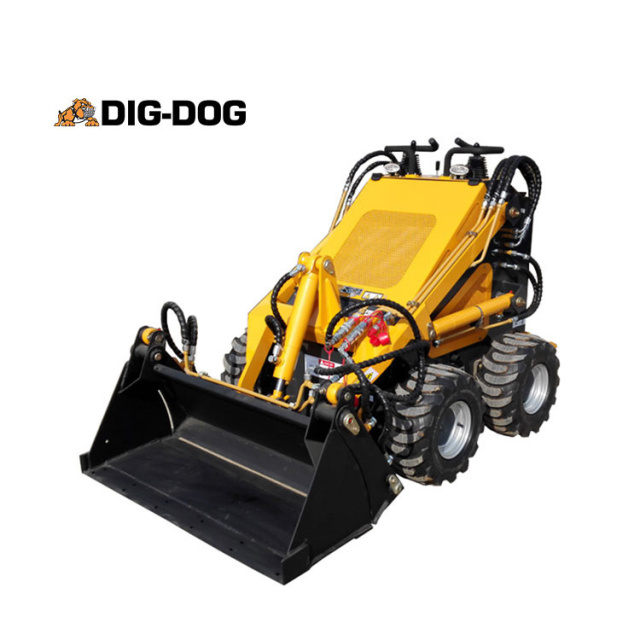

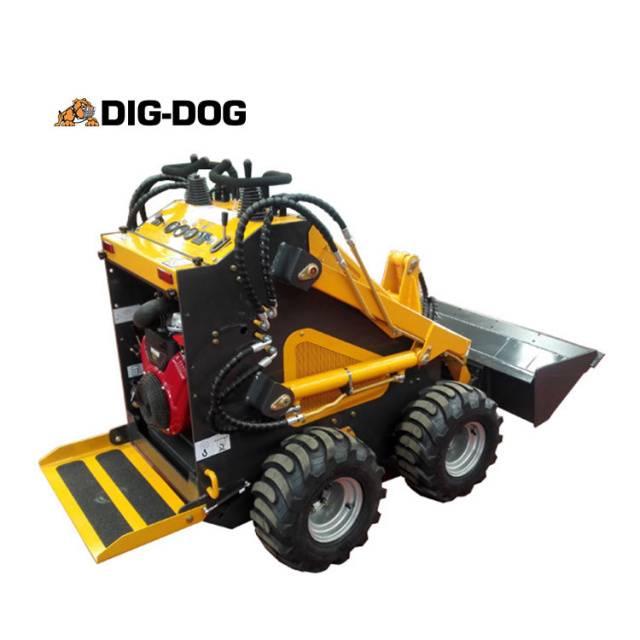

DIG-DOG DSL20 Diggit Mini Skid Steer Loader

Name: DIG-DOG DSL20 Mini Skid Steer Loader 890 Kg
Brand: DIG‑DOG | Versatile Compact Excavators & Loaders for Tough Jobs
SKU: DSL20
Availability: InStock
Rating: 5 (1 reviews)

Diggit Mini Skid Steer Loader | DIG-DOG DSL20

Item	DSL20
Operating weight	890kg
Max lifting Force(kg)	200 Kg
Bucket capacity	0.15 m3
Max lifting power	375 Kg
speed	0-5.5 Km/h
Rated power	21HP/23HP
Rotating speed（rpm）	3600
Noise（Db）	≤95
Hydraulic pressure（Mpa）	17
Max working height（A）	2115 mm
Max pin height （B）	1856 mm
Max dump height（C）	1460 mm
The highest point discharge distance（D）	388 mm
Bucket swing angle（β）	55°
Bucket unloading angle（γ）	30°
Opening-closing angle（θ）	25°
Angle of departure（α）	8°
Total height （H）	1205 mm
The height from the ground（F）	90 mm
Wheelbase （G）	636 mm
No bucket length（J）	1752 mm
Total width （W）	1033 mm
Bucket width （K）	980 mm
Total length（L）（with bucket）	2206 mm
Turning radius (R)	1307 mm

DSL20 Overview

The DIG-DOG diggit mini skid steer loader DSL20 is a multi-functional construction engineering equipment with a compact design, easy operation and suitable for various working environments. Its strong performance and versatility make it widely used in landscaping, manufacturing, construction sites, recycling, gardens, road construction, construction, farming and other industrial areas.

DSL20 Features & Benefits

The mini skid loader has a variety of convenient operating features, such as an operating handle that can handle walking, lifting, somersaults, etc., and two operating modes, servo and standard, making operation more convenient. Its plunger pump motor is stable, four-wheel drive adapts to various environments, and various types of foot pedals make operation safer and more convenient.

In addition, this diggit skid steer loader also has the characteristics of easy maintenance. For example, the oil outlet is located outside the car body, making it easy to replace the air filter, engine oil, engine filter, and spark plug. The rear guard plate is easy to remove, and the upper cover can be opened, etc. This makes maintenance easy and fast.

The stand-on mini skid steer loader can be equipped with a variety of accessories, and the accessories are interchangeable, about 40 types. The unified hanger quick-change and quick-connection makes the work more flexible and diverse. Its internationally renowned brand engines are stable and reliable, with guaranteed quality. At the same time, it is suitable for a variety of tires and track modes to choose from, making it more adaptable. Narrower body design, only 800mm wide, can easily pass through small spaces. The large fuel tank and lift keep it efficient during long working hours.

In general, this mini skid steer brings a lot of convenience to users by simplifying manual work and improving work efficiency. Compared with similar products, it has a higher lifting height and stronger adaptability. Choose the DIG-DOG DSL20 mini skid steer loader to make your engineering operations more efficient and convenient!

DIG-DOG DSL20 Mini Skid Steer Loader 890 Kg
