Name: DIG-DOG DE15 1.5 ton Mini Excavator | Mini Digger For Sale - Manufacturer
Brand: DIG‑DOG | Versatile Compact Excavators & Loaders for Tough Jobs
SKU: DE15

Description

Product Description

Compact Design Targeting Confined Spaces and Skilled Operators

The DIG-DOG DE15 small excavator is engineered specifically for work environments where space constraints challenge operational efficiency. Its tailless structure combined with a boom-side-shift function enhances maneuverability, making it highly suitable for contractors and urban construction teams requiring precise excavation in narrow areas. As a product from leading mini excavator manufacturers, it addresses the need for professional-grade machinery optimized for restricted access sites. This excavator machine effectively replaces manual labor, delivering accuracy and controlled force in landscaping, municipal engineering, and underground utility installations.

Robust Technical Architecture Supporting Operational Stability

Equipped with a Kubota D722 engine generating 10.4 kW, the DE15 complies with Euro 5 emissions, underscoring its environmental adaptability. The hydraulic system integrates internationally sourced components with load pilot control for enhanced responsiveness and fuel efficiency. This 2 ton mini excavator offers interchangeable rubber and iron track options, enabling adaptation across diverse terrains while maintaining low ground pressure for sensitive surfaces. Precision metrics such as max digging radius and depth are calibrated to maximize task versatility, while optional cabin enclosures improve operator ergonomics and safety in demanding conditions.

Versatility Across Multiple Construction and Agricultural Industries

This excavator finds comprehensive use in contexts including pipeline trenching, orchard soil management, and basement foundation work, where compactness and functionality simplify workflow integration. The extended hydraulic circuit permits attachment diversification, facilitating multidisciplinary applications from light demolition to augering within small-scale construction projects. By streamlining equipment needs, this small excavator enhances operational efficiency for professional users requiring flexible, reliable machines. Its adaptability extends to municipal and landscaping contracts where strict compliance and minimal site disruption are priorities.

Product Advantages

Integrated Design Delivering Modular Versatility

The DE15 embodies a structural design optimized for compactness without compromising operational capacity. Its boom-side-shift and tailless chassis allow effective navigation within spatially constrained sites, a key advantage emphasized by reputable mini excavator manufacturers. The ability to swap out rubber and iron tracks enables strategic adaptation to substrate conditions, minimizing downtime. Hydraulic system components, sourced globally and integrated with load pilot control, ensure fluid response and balanced power distribution. This excavator supplier’s systematic approach results in a machine architecture that supports ease of maintenance and component interchangeability, catering to professional fleet requirements.

Optimized Performance and Operator-Centric Utility

Performance-wise, this excavator machine delivers consistent digging force and maneuverability essential for precision tasks. Operational controls are fine-tuned for fuel efficiency and responsiveness, reducing operating costs while enhancing output. Optional cabin installations improve user comfort and safeguard against environmental exposure, increasing operator focus over extended shifts. This small excavator offers excellent gradeability and swing control, allowing smooth operation on inclined or uneven terrain. The operator interface and hydraulic attachment compatibility elevate usability, enabling contractors to deploy the machine effectively across variable job site conditions.

DIG-DOG DE15 1.5 ton Mini Excavator | Mini Digger For Sale - Manufacturer
Excavator

This 1.5 ton mini excavator ( digger) with tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, retractable chassis, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 ).Can be equipped with a fully enclosed cabin to provide a comfortable environment for work.

1.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
2.Famous brand hydraulic system parts ensure the stable quality.
3.The small excavator is equipped with double fuel filter to guarantee fuel purity to protect engine
4.Extend hydraulic line for various attachments.
5.Comfort cabin, wide and open sight make operator easy to work.
6.It could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.

Features & Benefits of The 1.5 ton Mini Digger

● The load-sensing system realizes the perfect match between the engine and the main pump, provides accurate flow, improves work efficiency, saves fuel and time.

● Integral reinforced chassis, robot welding, and welding seam forming completely eliminate the influence of human factors, the arc is stable, the penetration depth is controllable, and the forming is beautiful.

● High-end configuration, using hydraulic international famous brands to ensure high reliability of the hydraulic system.

● Products are widely used in indoor demolition, orchard planting, municipal engineering, greenhouses, wasteland reclamation, nursery ditching and fertilization, pipelines, basement renovation, under ground operations, etc.

● The crushing pipeline is standard, and various attachments such as hammers, rippers, grabbers, augers, etc. can be added, and one machine can be used for multiple purposes.

● The iron track and rubber track can be interchanged at any time, adapting to various construction conditions, and the deflection swivel arm can be upgraded, which can be deflected to dig walls easily.

Specification

DE15 1.5 ton mini excavator have two types: with cabin and without.

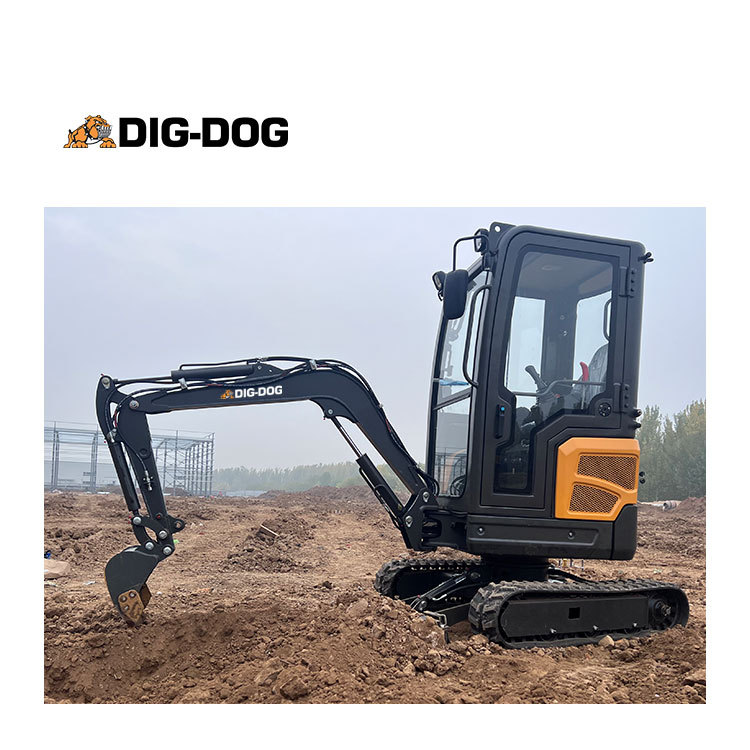

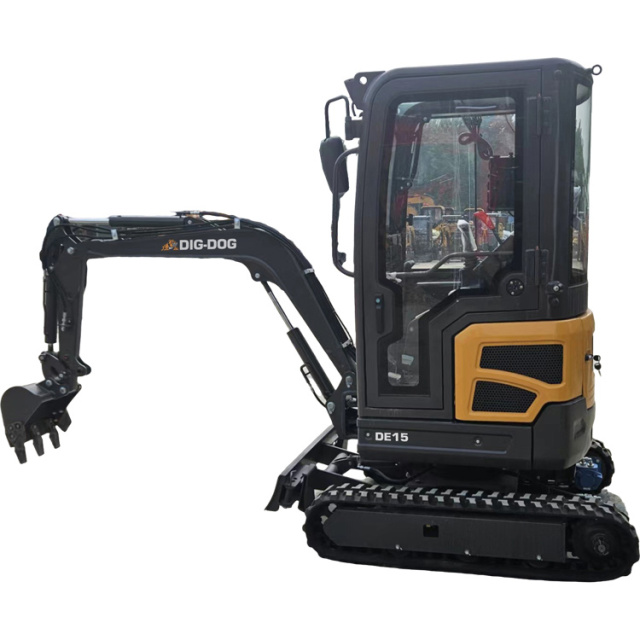

DIG-DOG DG15 1.5 ton mini excavator with cabin

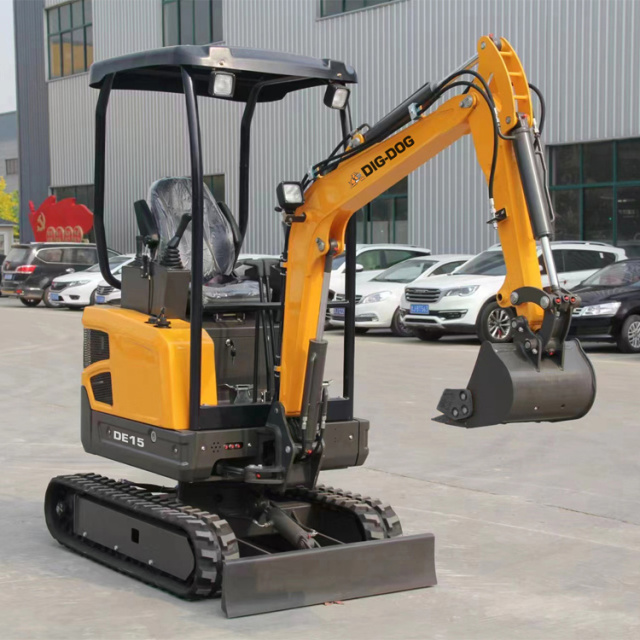

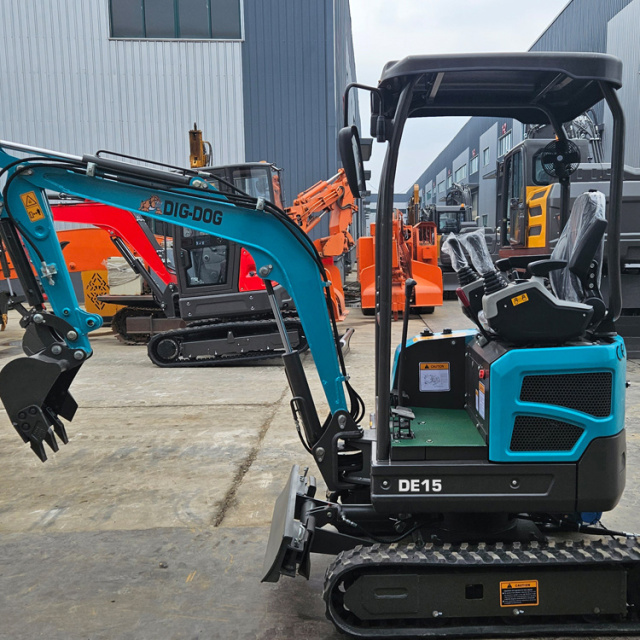

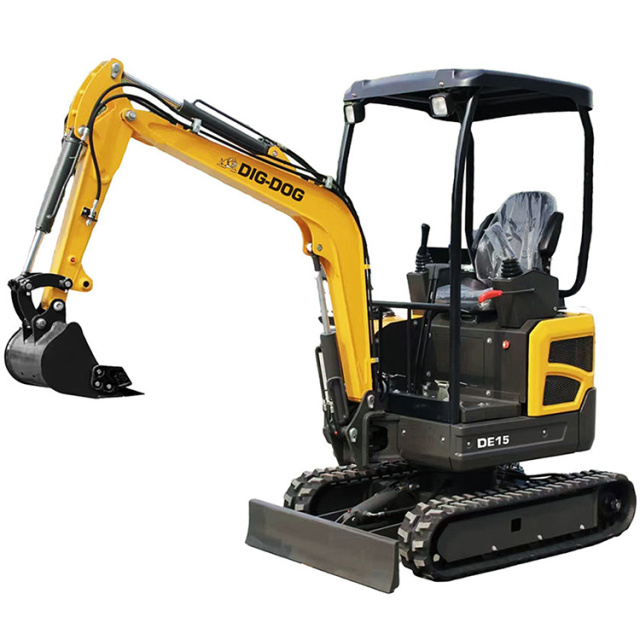

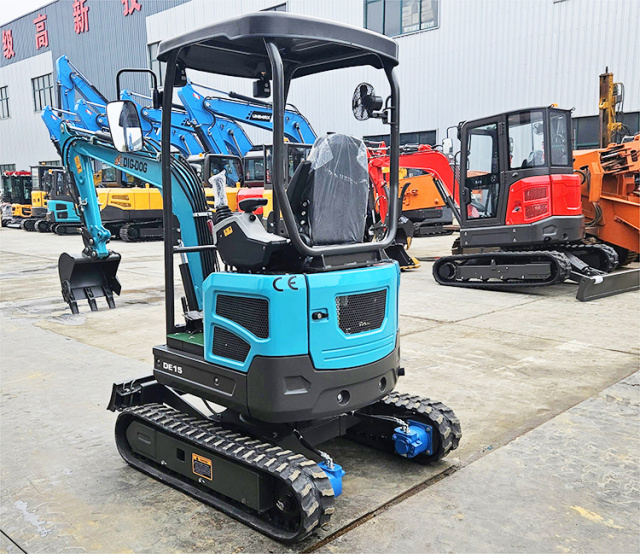

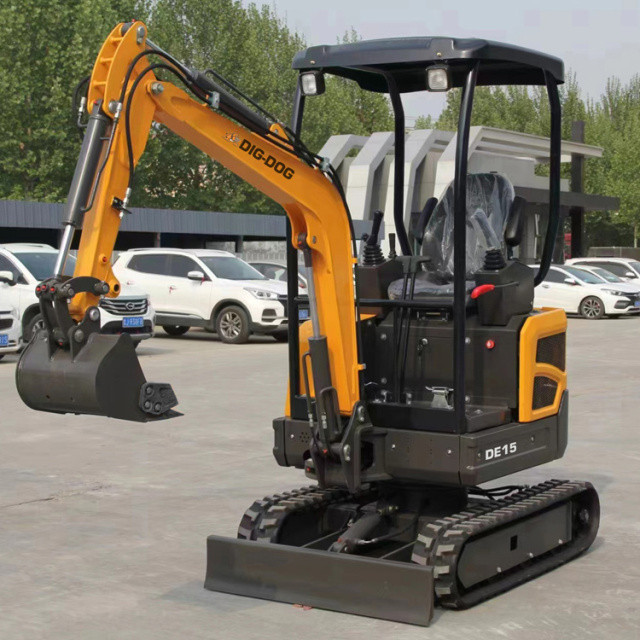

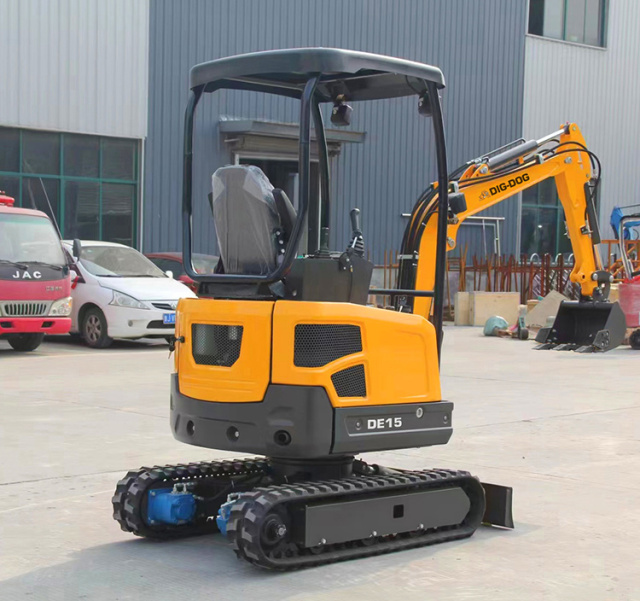

DIG-DOG DG15 1.5 ton mini excavator without cabin

DIG-DOG Specifications of The 1.5 Ton Mini Excavator
Type of tracks		Rubber track
Machine weight		1400kg
Bucket Capacity		0.025m3
Engine	Model	Kubota D722 10.4KW/2500rpm
	Max. Turque	45N.m/2500RPM
	Type	In-line, water cooled, 4 stroke, Mechanical pump, normally aspirated
	Displacement	0.719
	No. of cylinder	3
Main Performance	Swing Speed	r/min	12-13
	Traveling Speed(high/low)	km/H	2.1/3.2km/h
	Grade ability	°	58%
	Max. Bucket Digging Force	kN	9
	Arm Digging Force	kN	5.5
	Ground Pressure	Kpa	23
	Hydraulic system pressure	Mpa	20
	Machine Weight	KG	1400
	Fuel Tank capacity	L	14.5
	Hydraulic Tank capacity	L	14.5
	Engine oil capacity	L	3.2
Overall Dimensions	Overall Length	mm	3329
	Overall Width	mm	990
	Overall Height	mm	2267
	Mini Ground clearance	mm	153
	Track width	mm	200
	Axle base(Track length on ground)	mm	1190
	Track Gauge	Mm	790(1100)
	Swing radius at tail	Mm	655
	Swing radius at front	Mm	1812
	Height of blade	Mm	210
Operation parameters	Bucket Capacity	m3	0.025
	Max. Digging Radius	mm	3529
	Max. Digging Depth	mm	2017
	Max. Digging Height	mm	2955
	Max. Dumping Height	mm	2077
	Max. vertical digging depth	mm	1610

Related Models


DE10 Power : 7 KW Bucket Capacity: 0.025 m³ Machine weight: 1 ton	DE12 Power: 8.3 KW Bucket Capacity: 0.03 m³ Machine weight: 1.2 ton	DE15 Power: 10.4 KW Bucket Capacity: 0.025 m³ Machine weight: 1.4 ton	DE17 Power: 10.3 KW Bucket Capacity: 0.035 m³ Machine weight: 1.5 ton

DE18 Power: 18.4 KW Bucket Capacity: 0.06 m³ Machine weight: 1.8 ton	DE20 Power: 14.2 KW Bucket Capacity: 0.07 m³ Machine weight: 2 ton	DE25 Power: 22.1 KW Bucket Capacity: 0.1 m³ Machine weight: 2.5 ton	DE35 Power: 18.4 KW Bucket Capacity: 0.12 m³ Machine weight: 3.5 ton

Use Scenarios

Narrow Urban Construction and Municipal Engineering Applications

In urban settings where site access is limited by buildings and infrastructure, this small excavator provides the operational agility needed for pipeline trenching and municipal road repairs. Its compact dimensions and tail-swing radius reduce risk of property damage and enable efficient positioning on cramped lots. The advanced hydraulic system supports multi-attachment use, making it compliant with strict municipal standards. Integration with on-site workflow management systems enhances maintenance planning and reduces turnaround times. The DE15 from trusted mini excavator manufacturers fits seamlessly within urban project requirements demanding precision and safety.

Agricultural Soil Management and Orchard Maintenance

In agricultural environments, this excavator machine facilitates soil preparation, ditch digging, and waste residue handling critical for orchard productivity. Its low ground pressure rubber tracks minimize crop damage while providing traction on varied soils. The adaptable hydraulic lines allow attachment changes for augering or light hammering tasks. Operators benefit from the nimble maneuvering capabilities essential in irregular land layouts. The machine’s compliance with environmental emissions standards aligns with sustainable farming policies, supporting eco-conscious operational frameworks. This 2 ton mini excavator integrates effectively into farm equipment fleets, enhancing overall land management efficiency.

FAQ

What are the main features of the DIG-DOG DE15 mini excavator?

Our mini excavator features a compact tailless design with boom-side-shift, a load-sensing hydraulic system, and interchangeable rubber and iron tracks. Powered by a Euro 5-compliant Kubota engine, it delivers efficiency and precision for confined-space excavation and varied construction tasks.

Can I customize the attachments for the DE15 excavator?

Yes, the DIG-DOG DE15 supports multiple attachments via extended hydraulic lines. This versatility allows you to use tools like hammers, augers, or buckets, adapting your excavator machine for different tasks such as demolition, trenching, or landscaping.

How do you ensure the durability and reliability of the DE15 mini excavator?

We build the DE15 using internationally recognized hydraulic components and a Kubota engine, supported by ISO 9001, CE, and OSHA certified production standards. Our 20,000-hour extended warranty on core parts ensures your mini excavator delivers long-term stable performance.

What logistics and support do you offer to business customers?

We provide a 72-hour global emergency response and technical team support on-site to solve key challenges quickly. Our efficient production cycle and reliable supply chain make us a trusted excavator supplier for industrial buyers requiring fast, dependable delivery.
